Forklift truck

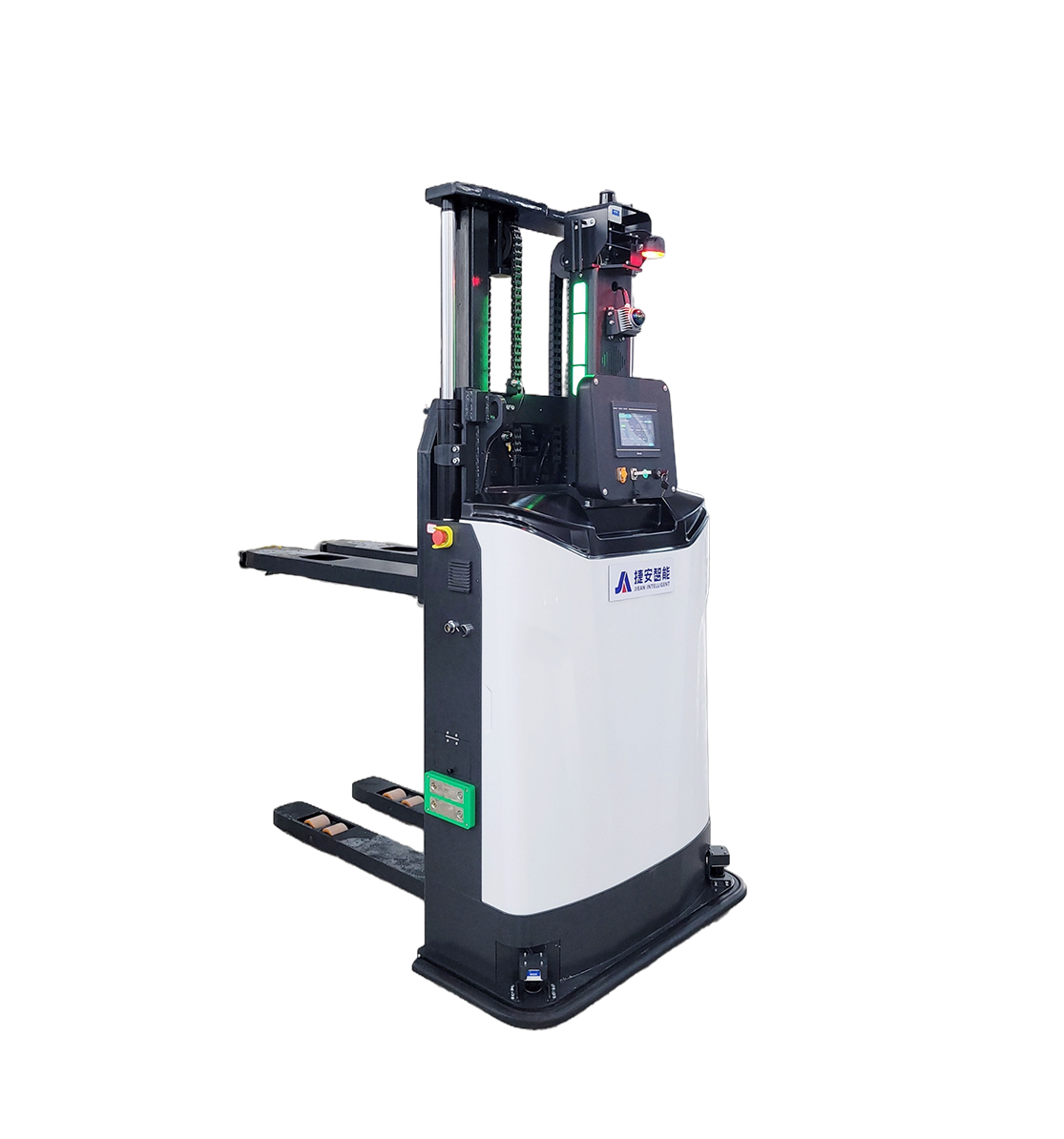

Intelligent Stacker Forklift Series
1. The body width is only 1000 mm, with a minimum turning diameter of 2680mm, supporting narrow lane traffic, and a maximum load capacity of 2T. 2. Recognition of multiple vehicles, wide-angle high-precision recognition: supports multiple sizes and types of pallets, shelves, and cages, and can accurately recognize pallets/pallets/pallets with Sichuan and Tian characters, nine legged pallets, etc. from multiple angles. 3. Laser SLAM navigation, high-precision recognition: navigation accuracy ± 20mm, positioning accuracy ± 10mm, precise, efficient, and convenient. 4. 360 ° wide field of view, multiple safety protections: Supports up to 360 ° scanning range, 30 m detection distance, ensuring a safer wide field of view; Equipped with multiple safety protections such as 3D obstacle avoidance laser, distance sensor, and hardware self-test. 5. Supports recognizing maps up to 400000 square meters, easily crossing regional restrictions, providing greater handling space and storage location options. 6. Fast charging and quick changing, ultra long battery life: charging<1.5 hours, comprehensive battery life of 8 hours, charging mode can be freely selected as automatic or manual.
Laser SLAM intelligent forklift AGV: Laser SLAM navigation, equipped with a lifting fork device, can automatically lift goods to a specified height according to preset programs or instructions, and accurately stack goods to designated positions on high-rise shelves. During the stacking process, the fork can achieve smooth ascent and descent through a precise control system. By relying on high-precision hydraulic systems or electric lifting mechanisms, the lifting mechanism can accurately control the movement speed and position of the forks, ensuring that the goods will not be damaged due to shaking or collision during the stacking process. The lifting height can usually be adjusted according to actual needs to meet the storage requirements of shelves at different heights.
Application scenarios
Meet diverse needs such as automated handling, distribution, palletizing, stacking height, loading and unloading, warehousing, outbound, inventory, etc. Support customization
Applications
Warehousing and logistics, manufacturing, logistics, retail, medical and other industries, cold chain distribution, etc
Total body height (when the door frame is retracted) : 2040mm
Lifting height: 3000mm
Height of frame when opened: 3500mm
Fork lowering height: <90mm
Body length (excluding fork tip) : 1925mm
Distance from fork surface to front: 705mm
Body width: 1000mm
Fork size: L/W/H 1220/185/55mm
Fork width: 550/600/685mm
Wheelbase center ground clearance: 30mm
Right-angle stacking channel width 800X1200 pallets (1200 placed along the fork) : 2230+200mm (in place)
Right-angle stacking channel width 1200X1200 pallets (1200 placed along the fork) : 2363+200mm (in place steering)
Minimum turning radius: 1340+200mm
Positioning accuracy: ±10mm, ±0.5°
Map area (single) : < 400000m²
Maximum load: 1600kg
Function configuration:
Navigation Laser: 1 (H1)
Obstacle avoidance laser: 2 (C2 front), 1 (C2 rear)
Driving form: single steering wheel
Wireless network: Wi-Fi 802.11a /b/g/n/ac
Travel speed: full load/no load 2/2 m/s
Lifting speed: full load/no load 100/180 mm/s
Descent speed: full load/no load 245/230mm /s
Passability (slope/step/gap) : <5%/5mm/15mm
Security configuration:
Scram button
Acousto-optic indication
Braking distance: 1m/s / 1.5m /s / 30cm/50cm
360° Laser protection
Bumper strip
High safety protection of fork teeth
Battery parameters:
Capacity: 24V 173Ah lithium iron phosphate battery
Endurance: 8-10h
Charging time: 10-80%:2h
Charging mode: Manual/automatic
Battery charge and discharge cycles: >2000 times
